Honda JDM Engines: K-Series, B-Series, F20C, and J-Series Buyer's Guide
Honda's JDM engine lineup is one of the most sought-after in the import market. Four engine families dominate buyer demand: the K-series (K20A, K24A), the B-series (B16A, B18C), the F20C from the S2000, and the J-series V6 (J35A). Each serves a distinct purpose — the choice depends on your chassis, your power goals, and your budget. This guide covers every family, explains the variants that matter, and helps you make the right selection before you buy.
Browse Honda engines in stock: K-series, B-series, J-series and more →

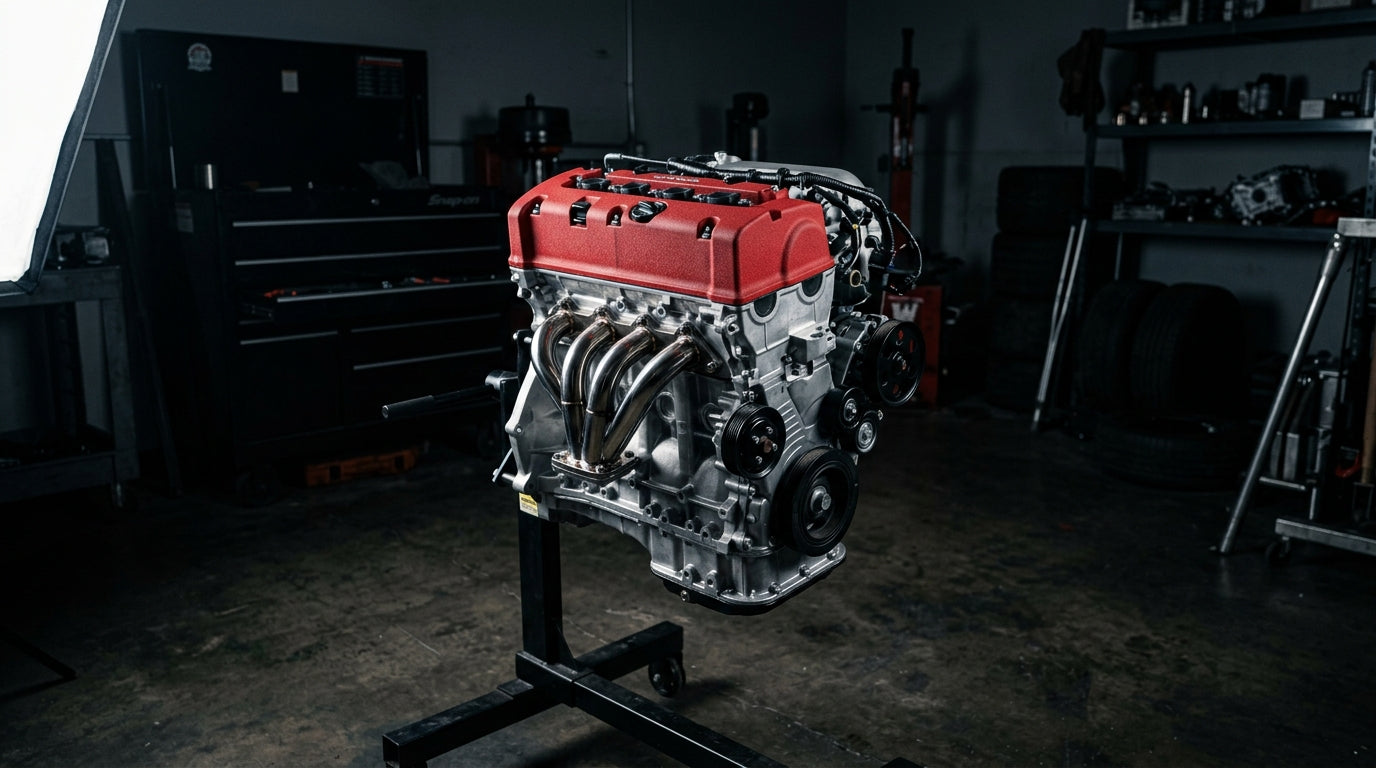

K-Series: K20A and K24A
The K-series is Honda's most versatile DOHC four-cylinder platform and the engine behind the majority of modern Honda performance builds. Two displacements dominate the JDM market: the K20A (2.0L) and the K24A (2.4L). Both use Honda's i-VTEC system, which combines VTEC cam switching with continuous variable timing on the intake camshaft — but the variants within each displacement are meaningfully different.
K20A Variants
The K20A is not a single engine. Three distinct variants exist, and the differences in output, cam profiles, and intended use are significant:
- K20A (Type R spec — DC5/FD2): The high-output variant used in the JDM Civic Type R (FD2) and JDM Integra Type R (DC5). Approximately 220 PS at 8,000 rpm. Aggressive intake and exhaust cam profiles, higher compression, and a redline of approximately 8,400 rpm with VTEC engaging around 5,800 rpm. This is the variant performance builders target when they say "K20A."
- K20A2 (Euro R / RSX Type S): The Euro R specification, used in the Accord Euro R and RSX Type S. Output is close to the Type R variant with similar cam timing. A viable alternative when the Type R spec is not available, though not identical.
- K20A3 (base Civic Si): Lower-output variant with less aggressive cam profiles and lower compression. Not a performance engine and not a substitute for the Type R or Euro R specifications. Confirm which variant you're purchasing.
K24A Variants
The K24A adds stroke — moving from 86mm (K20A) to 99mm — which produces more torque at lower RPM at the cost of a lower rev ceiling. Two variants matter for buyers:
- K24A (Element / CR-V base): The lower-output variant used in utility applications. Suited for daily driver replacements, not performance builds.
- K24A2 (TSX / Accord Euro R): The preferred performance variant. Honda fitted this to the Acura TSX and JDM Accord Euro R with approximately 200 PS and a stronger head than the base K24A. Builders who want torque without sacrificing too much peak power — particularly those planning forced induction — choose the K24A2.
K20A vs K24A: Which One?
Choose the K20A (Type R spec) for high-revving naturally aspirated builds where peak power and a powerband above 6,000 rpm define the character of the car. Choose the K24A2 when street driveability matters more, or when you're building for boost — displacement advantage over the K20A is meaningful under forced induction. For the complete head-to-head breakdown, see our K20A vs K24A comparison. For swap planning, see our K-series swap guide.
When evaluating a K-series unit, check VTEC solenoid condition, listen for valve train noise at idle, and watch for oil consumption. Every unit in our inventory is quality inspected before it ships.
B-Series: B16A and B18C
The B-series predates the K-series as Honda's DOHC VTEC performance platform, and it remains relevant for two specific reasons: native fitment in the EF, EG, and EK Civic chassis without adapter hardware, and a proven, well-documented swap ecosystem built around decades of enthusiast development. If your build is EF, EG, or EK — or if you're doing a spec-correct restoration — the B-series is the correct engine family, not an inferior alternative to the K-series.
B16A (1.6L DOHC VTEC)
The B16A produces approximately 160–170 PS in JDM specification — significantly more than USDM engines sold in the same era. Applications include the JDM Civic SiR (EF8, EG6), the CR-X SiR, and the Del Sol SiR. Three meaningful variants exist:
- B16A Phase 1 (EF chassis): The original B16A fitted to the EF8 Civic SiR. First-generation VTEC implementation. Intake manifold and ECU differ from later variants — confirm compatibility with your supporting hardware before purchase.
- B16A2 (EG chassis): Updated for the EG6 Civic SiR with revised intake manifold and ECU calibration. The most commonly sourced B16A variant in the swap market and the most straightforward drop into EG and EK Civic platforms.
- B16A3 (EDM Civic): A European-market variant with different intake manifold and ECU mapping compared to the JDM versions. Confirm which you are receiving — the distinction affects which supporting parts you need.
The B16A is the foundation of the classic EF/EG Honda build ecosystem. Wiring is simpler than the K-series because it predates drive-by-wire, and the established B-series mount and transmission infrastructure means fewer adapter components for period-correct builds.
B18C (1.8L DOHC VTEC)
The B18C is the engine Honda fitted to the JDM Integra Type R (DC2). It produces approximately 185–200 PS in JDM specification and is one of the most respected naturally aspirated four-cylinders Honda ever built. What makes it distinct:
- Factory forged crankshaft — a production specification Honda reserved for Type R applications
- 10.8:1 compression ratio
- Aggressive cam profiles producing peak output above 6,500 rpm
The B18C is frequently confused with the USDM B18C1. They are not the same engine. The JDM B18C produces more power, runs higher compression, and carries different cam profiles than the USDM GSR-spec B18C1. If you are restoring a JDM DC2 Integra Type R or building toward JDM Type R specification, the B18C (JDM) is the correct unit — not the B18C1.
When evaluating a B-series unit: VTEC crossover seal condition affects VTEC engagement quality; rod bearing wear is a known concern on high-mileage B18C engines. Our hand-selected units from Japan typically carry 40,000–70,000 miles. Japan's shaken inspection system incentivizes early vehicle retirement, which is why genuine JDM imports carry lower mileage than their age would suggest in the US market.
B-Series vs K-Series
Choose the B-series for EF, EG, and EK chassis builds where native fitment and simpler wiring outweigh the K-series power advantage. Choose the K-series for EP3, DC5, or purpose-built performance platforms where modern output levels and a deeper contemporary aftermarket matter more.
J35A: Honda's V6 Replacement Engine
The J35A is Honda's 3.5L VTEC V6, sourced from vehicles including the Odyssey, Ridgeline, Pilot, Acura TL, and Acura MDX. The primary buyer is a minivan or SUV owner whose domestic engine has exceeded reliable service life — a situation where the dealer repair cost frequently exceeds the vehicle's market value. A low-mileage JDM import J35A resolves that equation directly.
One variant note: some J35A configurations include Variable Cylinder Management (VCM), Honda's system that deactivates cylinders under light load. VCM has a documented association with elevated oil consumption on higher-mileage domestic units. When sourcing a J35A, confirm whether the unit is a VCM or non-VCM configuration and select based on your application. Our J35A inventory is quality inspected and backed by our warranty with fast nationwide shipping. For pricing context across the full engine catalog, see our JDM engine cost guide.
F20C: The S2000 Engine
The F20C is Honda's 2.0L naturally aspirated inline-four fitted to the AP1 S2000. It produces approximately 247 hp at 8,300 rpm with a factory redline of 8,900 rpm — the highest specific output per liter of any naturally aspirated Honda production engine when it launched. The engine is precision-built to tolerances that reflect its racing-derived design.
Two S2000 engine variants exist, and the distinction matters when sourcing:
- F20C (AP1 S2000, 1999–2003): 2.0L displacement, approximately 247 hp, 8,900 rpm redline. The higher-revving variant with the stronger reputation among enthusiasts.
- F22C (AP2 S2000, 2004–2009): 2.2L displacement, approximately 242 hp, 8,200 rpm redline. Honda increased displacement and reduced the redline to improve mid-range torque for the US market. The F22C and F20C are not interchangeable without modification.
F20C buyers fall into two categories: S2000 owners replacing a failed engine, and builders fitting the engine to lightweight track cars or kit vehicles where its power-to-weight characteristics are valuable. Verify which variant you are receiving — displacement and redline differ, and the difference affects your build planning.
D-Series: JDM-Only Variants
The D-series is Honda's single-cam four-cylinder family — a replacement engine family rather than a performance platform. One JDM-only variant is worth noting: the D15B 3-stage VTEC, fitted to the JDM EF and EG Civic. Honda's 3-stage system optimizes cam switching across three zones: economy at low RPM, efficiency in the mid-range, and performance at high RPM. The D15B 3-stage VTEC was never sold in the US market, making it a JDM-specific specification for owners doing period-correct EF or EG builds.
Honda Engine Selection: Decision Table
| Use Case | Engine | Typical JDM Mileage | Key Feature |
|---|---|---|---|
| Modern performance swap | K20A (Type R) | 40,000–70,000 mi | High-revving, 8,400 rpm redline |
| Torque-focused or boosted build | K24A2 | 40,000–70,000 mi | Longer stroke, stronger low-end |
| Classic EF/EG/EK swap | B16A or B18C | 40,000–70,000 mi | Native fitment, simpler wiring |
| JDM Integra Type R restoration | B18C (JDM spec) | 40,000–70,000 mi | Factory forged crank, 10.8:1 CR |
| S2000 replacement | F20C | 40,000–70,000 mi | 8,900 rpm, highest NA specific output |
| Minivan/SUV V6 replacement | J35A | 40,000–70,000 mi | High availability, direct application |
All units are hand-selected from Japan and backed by our warranty. For cross-brand comparisons, see our reliability ranking guide and our best JDM engines under $2,000 guide.
Frequently Asked Questions
What's the difference between the JDM B18C and the USDM B18C1?
The JDM B18C (DC2 Integra Type R) produces approximately 185–200 PS with a factory forged crankshaft and 10.8:1 compression. The USDM B18C1 (GSR specification) produces approximately 170 hp with lower compression and less aggressive cam profiles. They are mechanically different engines. For spec-correct DC2 Integra Type R builds, the JDM B18C is the correct unit.
Is the K20A better than the B18C for a Civic swap?
It depends on the chassis and build goals. For an EF or EG Civic, the B18C offers native fitment and a simpler wiring harness — the B-series ecosystem is mature and well-documented for those platforms. For an EP3 or a purpose-built performance build on a newer chassis, the K20A produces more power and benefits from a wider modern aftermarket. Neither engine is categorically superior — the chassis determines the answer.
Can I put an F20C in a non-S2000?
Yes, the F20C has been fitted to lightweight track cars, kit vehicles, and Lotus variants where the engine's power-to-weight advantage is the point. The swap requires custom mounts, dedicated wiring, and supporting hardware. Consult a certified mechanic to confirm fitment for your specific vehicle before purchase.
What Honda engines have VTEC?
VTEC appears across all four major JDM Honda engine families: the K-series (K20A, K24A2) uses i-VTEC, which combines cam switching with continuous variable timing; the B-series (B16A, B18C) uses the original single-stage VTEC system; the D15B uses Honda's 3-stage VTEC calibrated for economy and light performance; and the J35A uses VTEC on the V6. Each implementation is architecturally different — not all VTEC systems engage at the same RPM or for the same reason.
What's the K20A redline?
The JDM Type R K20A (DC5/FD2 specification) redlines at approximately 8,400 rpm in stock form. VTEC engages at approximately 5,800 rpm, at which point the second intake cam lobe activates and power delivery changes character noticeably. This high-RPM powerband is the defining characteristic that separates the Type R variant from the K20A2 and K20A3.
Every Honda engine in our inventory is a low-mileage JDM import, hand-selected from Japan, quality inspected, and backed by our warranty with fast nationwide shipping across the US. Browse our full Honda engine inventory →
